Description

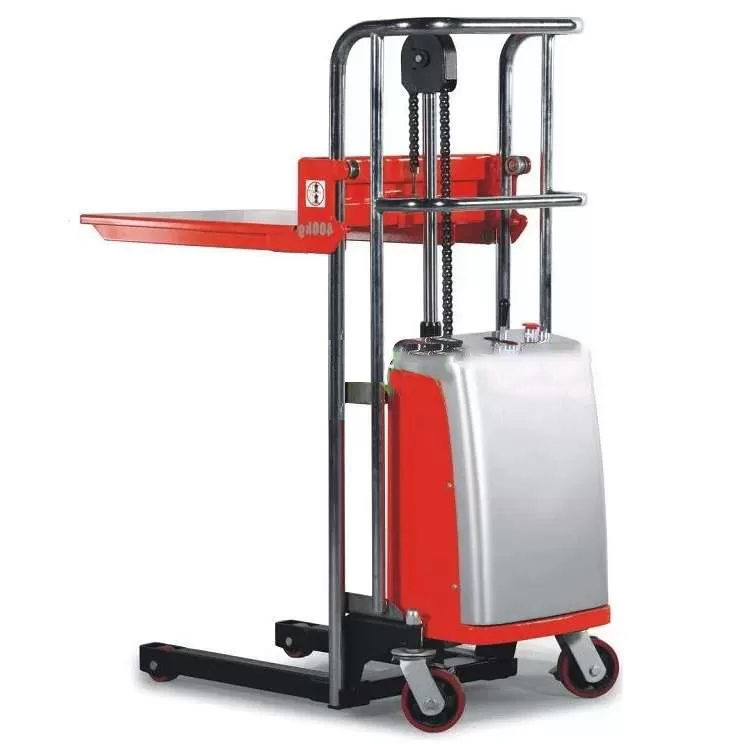

Electric Platform Stacker – EPS Series
The EPS Series Electric Platform Stacker is a range of highly maneuverable, light weight lifter, designed for straining out of any lifting job from ground level to over shoulder height. Ideal for use in narrow aisles and confined spaces.
Performance of EPS Series Electric Platform Stacker
- Combination of stacker and lifting table.
- Easier and faster lifting operation.
- Superior quality hydraulic motor system.
- Sensitive lowering through relief valve.
- Overload protection via pressure valve.
- Removable platform plate.
- Safe operation and secure working condition.
- Stable chassis with 2 frame rollers and 2 steering rollers.
- Robust construction and hard chromium plated frame.
- Epoxy powder coating plated ram.
- Effortless movement.
- Ball bearing rollers, polyurethane wheels.
- Conforms to EN 1757-1 & EN 1175-1.
| Electric Platform Stacker – EPS Series | |||||
|---|---|---|---|---|---|
| Model | UOM | EPS0411 | EPS0413 | EPS0415 | EPS0417 |
| Capacity (Q) | kg | 400 | 400 | 400 | 400 |
| Min. Platform Height (H1) | mm | 90 | 90 | 85 | 90 |
| Max. Platform Height (H2) | mm | 1100 | 1300 | 1500 | 1700 |
| Min. Mast Height (F) | mm | 1365 | 1565 | 1725 | 1965 |
| Platform Dimension (L x W) | mm | 650 x 580 | 650 x 580 | 650 x 576 | 650 x 580 |
| Length of Fork (L) | mm | 650 | 650 | 650 | 650 |
| Lifting Motor | kw | 0.8 | 0.8 | 0.8 | 0.8 |
| Battery | V/Ah | 12/65 | 12/65 | 12/65 | 12/65 |
| Weight | kg | 120 | 125 | 125 | 160 |
