Description

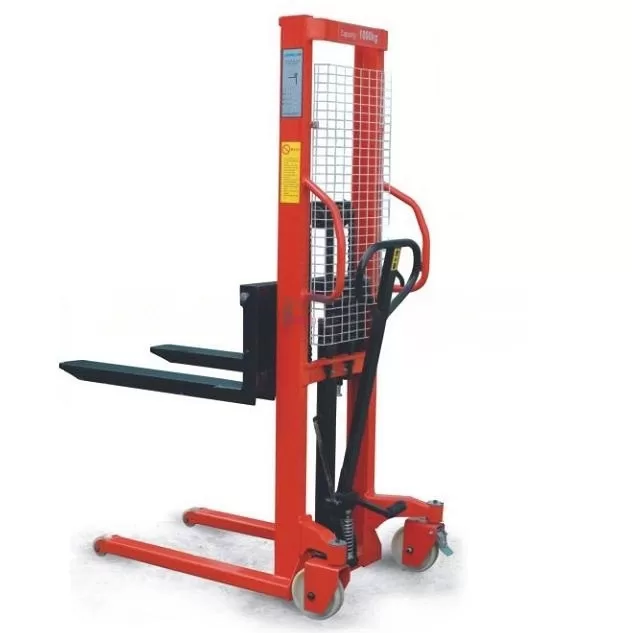

Economic Stacker – MSE Series
The MSE Series Economic Stacker make moving, lifting, loading and unloading simpler and quicker. Our MSE Series Stacker is a step up from the traditional pallet truck and take the burden out of lifting pallets as well as moving them. They are an economical alternative to a forklift truck and – because of their smaller size and weight – can be used in smaller spaces. Ideal for warehousing and light manufacturing applications.
Performance of MSE Series Economic Stacker
- Ergonomically designed handle for simple and comfortable operation.
- Top quality hydraulic pump system with German seals.
- Latest technology of hydraulic pump with minimum effort.
- Robust & Heavy duty one piece “C” section forks for greatest strength.
- Option adjustable forks for wider applications.
- Conforms to EN 1757-1.
| Economic Stacker – MSE Series | |||
|---|---|---|---|
| Model | UOM | MSE1016 | MSE1516 |
| Capacity (Q) | kg | 1000 | 1500 |
| Min. Fork Height (H1) | mm | 90 | 90 |
| Max. Fork Height (H2) | mm | 1600 | 1600 |
| Min. Mast Height (F) | mm | 2000 | 2000 |
| Overall Width of Fork (E) | mm | 330 – 550 (Adjustable) | |
| Size of Fork (W x H) | mm | 100 x 50 | 120 x 50 |
| Length of Fork (L) | mm | 1100 | |
| Radius of Gyration | mm | 1130 | 1130 |
| Weight | kg | 158 | 158 |
